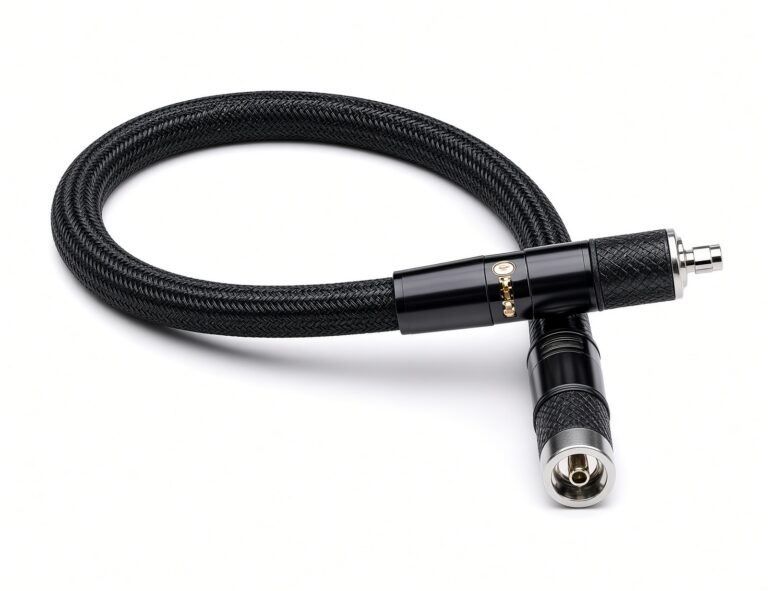

VN Series VNA Test Port Extension Cables
High-Performance VNA Test Port Extension Cables for Accurate, Repeatable Measurements
MegaPhase VN Series VNA Test Port Extension Cables are engineered for demanding RF and microwave test environments where measurement accuracy, phase stability, and long-term durability are critical. Available in configurations supporting frequencies through 67 GHz, these high-performance cable assemblies provide mechanically stable, precision performance for vector network analyzer (VNA) testing, calibration, and production measurement applications.
Designed with an internal armor reinforcement, VN Series cables maintain exceptional electrical stability during flexure, helping engineers achieve repeatable measurements while minimizing test uncertainty. Whether used in laboratory characterization, automated test systems, or high-frequency production environments, VN Series cables deliver reliable performance over thousands of test cycles. Custom lengths and phase-matched sets are available.
Through 67 GHz|50 Ω nominal|VSWR 1.10–1.60:1|−60° to +120°C
Engineered for Critical Test Environments
VNA Measurement & Calibration
Extend test ports while maintaining measurement integrity during device characterization, calibration verification, and precision RF testing.
Production Test & ATE
Provide consistent electrical performance in high-volume manufacturing environments where cable movement and repeated connections can impact measurement accuracy.
Aerospace & Defense RF Testing
Support radar, electronic warfare, satellite communications, and high-frequency subsystem testing requiring stable phase performance and rugged cable construction.
Research & Development Labs
Enable accurate characterization of antennas, filters, amplifiers, mixers, and other RF/microwave components during product development and validation.
Specify MegaPhase. Measure with Confidence.
Why Engineers Choose the VN Series
Exceptional Phase Stability
Accurate VNA measurements depend on stable cable performance. VN Series cables are designed to minimize changes in phase, insertion loss, and VSWR during flexure, helping maintain calibration integrity and reducing measurement drift.
Repeatable Measurements Over Time
Mechanical movement is one of the leading causes of measurement variation in RF test systems. The VN Series is specifically engineered to deliver highly repeatable electrical performance, allowing engineers to trust their data and reduce retesting.
Rugged Design for Demanding Test Environments
Internally armored construction and reinforced cable ends provide superior durability compared to conventional test cables. The result is a longer service life and lower total cost of ownership in both laboratory and production environments.
Customizable for Your Test Setup
Available in custom lengths, phase-matched configurations, and a wide range of precision connector interfaces, VN Series cables can be tailored to meet the requirements of virtually any RF measurement system.
Stability You Can Verify
VN67 Series: data applies to VN34, VN40, VN50 and VN67 — plotted through 67 GHz
VN32 Series: data applies to VN4, VN8, VN18, VN26 and VN32 — plotted through 32 GHz
Charts as published in the VN Series technical data sheet, grouped by series as the data sheet groups them. Insertion loss by band, CW power handling and the full VSWR table are in the complete data sheet.
